Description

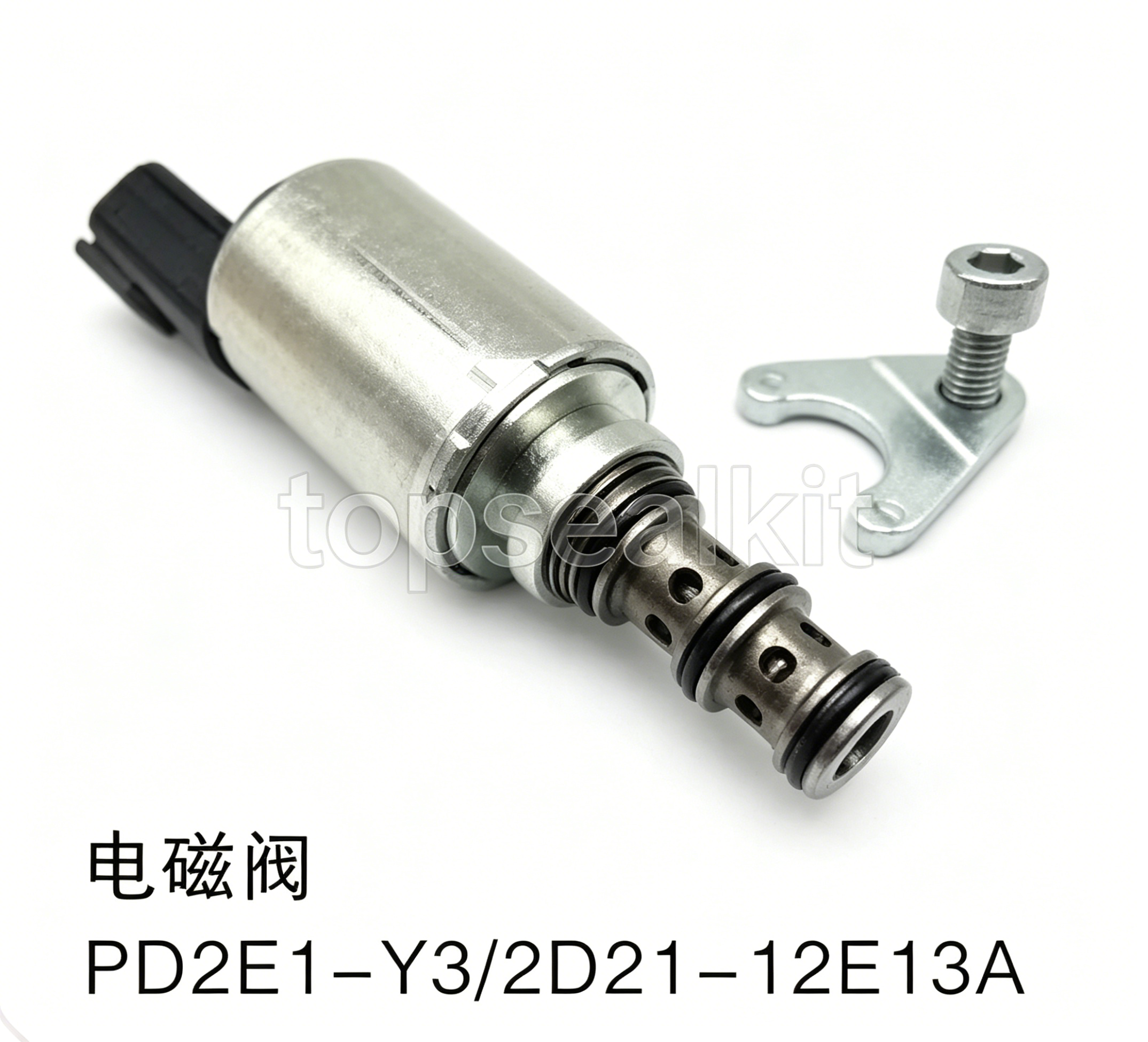

The PD2E1-Y3/2D21-12E13A solenoid valve is a 12VDC hydraulic pilot valve designed for installation in excavator pilot hydraulic control circuits, where it manages the low-flow hydraulic signals that drive the main directional control valves. This series of solenoid valves is widely used across multiple brands of compact and midi excavators, making the PD2E1-Y3/2D21-12E13A a versatile replacement part for fleet operators with mixed equipment. The valve features a compact cartridge-style design that allows it to be installed directly into manifold blocks without the need for external piping, reducing potential leak points and simplifying maintenance. The 12E13A designation indicates a 12V coil configuration with an E13A connector type, ensuring electrical compatibility with standard excavator wiring systems. The valve provides a nominal flow of 6 L/min at 21 MPa working pressure, with a response time of approximately 25ms for energizing and 15ms for de-energizing. Internal seals are made from fluorocarbon rubber (FKM/Viton) for compatibility with a wide range of hydraulic fluids including phosphate ester-based alternatives. The PD2E1-Y3/2D21-12E13A is an essential component for maintaining smooth and responsive operator control of boom, arm, bucket, and travel functions in compact excavators operating in urban construction, landscaping, and utility installation applications.
