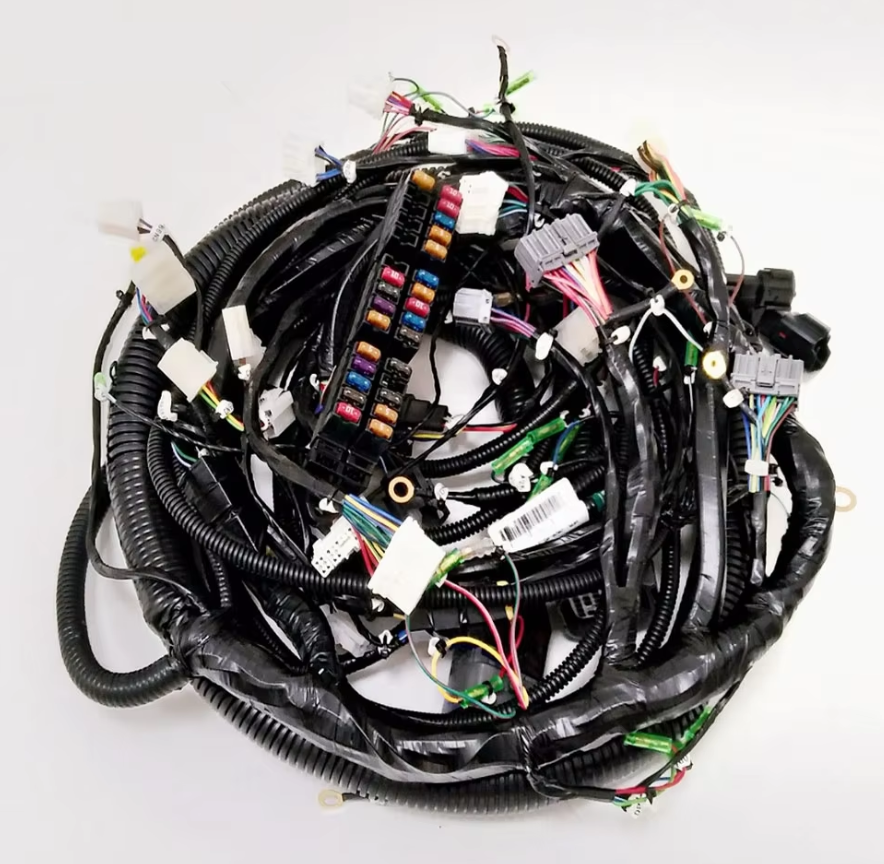

The 16E-77501020 in-cab wiring harness is the complete electrical infrastructure of the operator’s cabin in the Kato HD820R excavator. This multi-circuit wiring assembly connects every device the operator touches — the joysticks, the monitor display, climate controls, light switches, safety systems, and auxiliary circuits. When the 16E-77501020 fails, the Kato HD820R becomes immediately inoperable: the operator loses precision control, visibility, and the ability to safely run the machine. This guide covers full specifications, diagnosis procedures, and installation steps for the 16E-77501020 in-cab wiring harness.
What the In-Cab Wiring Harness Controls
The in-cab wiring harness on the Kato HD820R handles both power distribution and signal transmission simultaneously. Every action the operator takes flows through the 16E-77501020:
- Proportional hydraulic controls: Both joysticks send variable electrical signals through the harness to the proportional control valves — even minor signal degradation causes noticeable joystick lag
- Engine monitoring display: RPM, coolant temperature, fuel level, hydraulic oil temperature, and fault warning indicators all depend on clean sensor signals through the harness
- Travel system controls: High/low speed selection, steering modulation, and travel alarm circuits
- Climate control panel: A/C compressor clutch, fan motor speeds, and heater controls
- Work light and beacon controls: All cabin lighting switching and load management
- Quick coupler electrical circuit: Proportional control signals for hydraulic quick coupler attachments
- Rearview and side cameras: Camera power supply and video signal routing
- Emergency stop and fire suppression: Safety-critical circuits that must function without fail in emergencies
The Kato HD820R: Operator-Intensive Heavy Equipment
The Kato HD820R operates in environments that relentlessly stress in-cab electrical systems:
- High-frequency vibration from every swing, dig, and travel cycle — stresses connectors and breaks wire strands at mounting points
- Dust infiltration: Despite sealed doors, fine silica and construction dust accumulates on electrical connectors over time
- Extreme temperature swings: Cabin can go from near-freezing in early morning to extreme heat under direct sunlight
- Operator use cycles: Joystick potentiometers and switches cycle thousands of times per shift through the 16E-77501020
- Moisture: Condensation and tracked-in water create corrosion risk inside the cabin environment
Technical Specifications
| Attribute | Specification |
|---|---|
| Part Number | 16E-77501020 |
| Machine Model | Kato HD820R Excavator |
| Installation Zone | Operator Cabin Interior |
| Circuit Configuration | Multi-circuit: 24V power distribution + low-voltage signal transmission |
| Signal Wire Gauge | 18–20 AWG for proportional control circuits |
| Power Wire Gauge | 10–14 AWG for high-current circuits |
| EMI Shielding | Integrated shielding prevents electromagnetic interference with control signals |
| Flexibility Rating | High-flex design for vibration-rich cabin mounting environment |
| Connector System | OE-specification moisture-sealed connectors throughout |
| Quality | OEM Original Quality |
| Installation | Direct replacement — no cutting, splicing, or custom wiring |
Diagnostic Process for 16E-77501020 Harness Faults
Electrical faults in the Kato HD820R cabin require a systematic diagnostic approach:
- Document all symptoms: Create a complete list of which functions fail, when they fail, and under what operating conditions
- Fuse inspection: Check all cabin circuit fuses — a blown fuse indicates a short circuit somewhere in the 16E-77501020
- Wiggle test: With the engine running and all systems active, gently manipulate the harness — faults that appear and disappear indicate loose connections
- Connector access: Remove cabin floor panels and side trim to access the harness routing. Inspect all visible connectors for moisture damage, bent pins, or backed-out contacts
- Continuity testing: Use a multimeter to test individual circuits — compare readings against factory specifications in the Kato HD820R service manual
- Ground system check: Verify the Kato HD820R’s chassis ground connections are clean, tight, and corrosion-free
- Onboard diagnostics: Many Kato HD820R electrical faults register as error codes accessible through the built-in diagnostic system
Installation Procedure for 16E-77501020
- Safety isolation: Turn off the Kato HD820R, remove the ignition key, and disconnect both battery terminals.
- Cabin preparation: Remove the operator seat, floor mat, left and right side trim panels, and overhead consoles to fully expose the 16E-77501020 routing path.
- Photograph everything: Document the harness routing, all connector positions, cable tie locations, and ground strap attachment points before removal.
- Work methodically: Disconnect one connector at a time — immediately label each connector with its location. Rushing leads to costly reconnection errors.
- Remove the old harness: Cut and remove cable ties carefully. Inspect the removed 16E-77501020 — the failure mode confirms your diagnosis and helps prevent similar future failures.
- Install the replacement: Route the new 16E-77501020 following the exact OEM path. Ensure no wires cross sharp metal edges — use all OEM routing clips and grommets.
- Protect every connector: Apply dielectric grease to all electrical connectors before mating — this single step prevents most future harness failures.
- Reassemble cabin: Replace all trim panels and the operator seat, ensuring proper sealing to maintain the cabin’s dust and water protection integrity.
- Full system test: Reconnect batteries. Start the Kato HD820R. Test every cabin function — every switch, joystick, display, and auxiliary circuit.
- Operational validation: Run the excavator through complete digging and loading cycles. Confirm precise proportional control response from both joysticks.
Protecting the 16E-77501020 Harness: Maintenance Tips
- Cabin cleanliness: Vacuum the cabin floor and trim monthly — dust accumulation on connectors accelerates wear
- Door seal maintenance: Inspect and replace worn door seals annually to prevent water and dust entry
- Dry contact cleaner: Apply dry contact cleaner spray to switch and joystick connectors every 6 months
- Prompt attention: Address any electrical fault immediately — intermittent problems always escalate without exception
- Operator training: Train operators not to yank on cables or push controls beyond their designed range of motion
Safety Risks of a Failing In-Cab Harness
The Kato HD820R’s in-cab wiring harness is a safety-critical component. Harness failures can directly cause:
- Loss of hydraulic control: Delayed or unresponsive joysticks create immediately dangerous operating conditions
- Dashboard blackouts: Engine monitoring failures can allow dangerous operating conditions to continue undetected
- Travel system failures: Sudden loss of steering or travel function while the Kato HD820R is in motion
- Electrical fire risk: Short circuits in the 16E-77501020 can ignite cabin materials if not detected quickly
Order the 16E-77501020 for Kato HD820R Today
The 16E-77501020 in-cab wiring harness is in stock and ready to ship. Our technical team can verify compatibility with your Kato HD820R serial number before ordering. Contact us for availability, lead times, and pricing.
