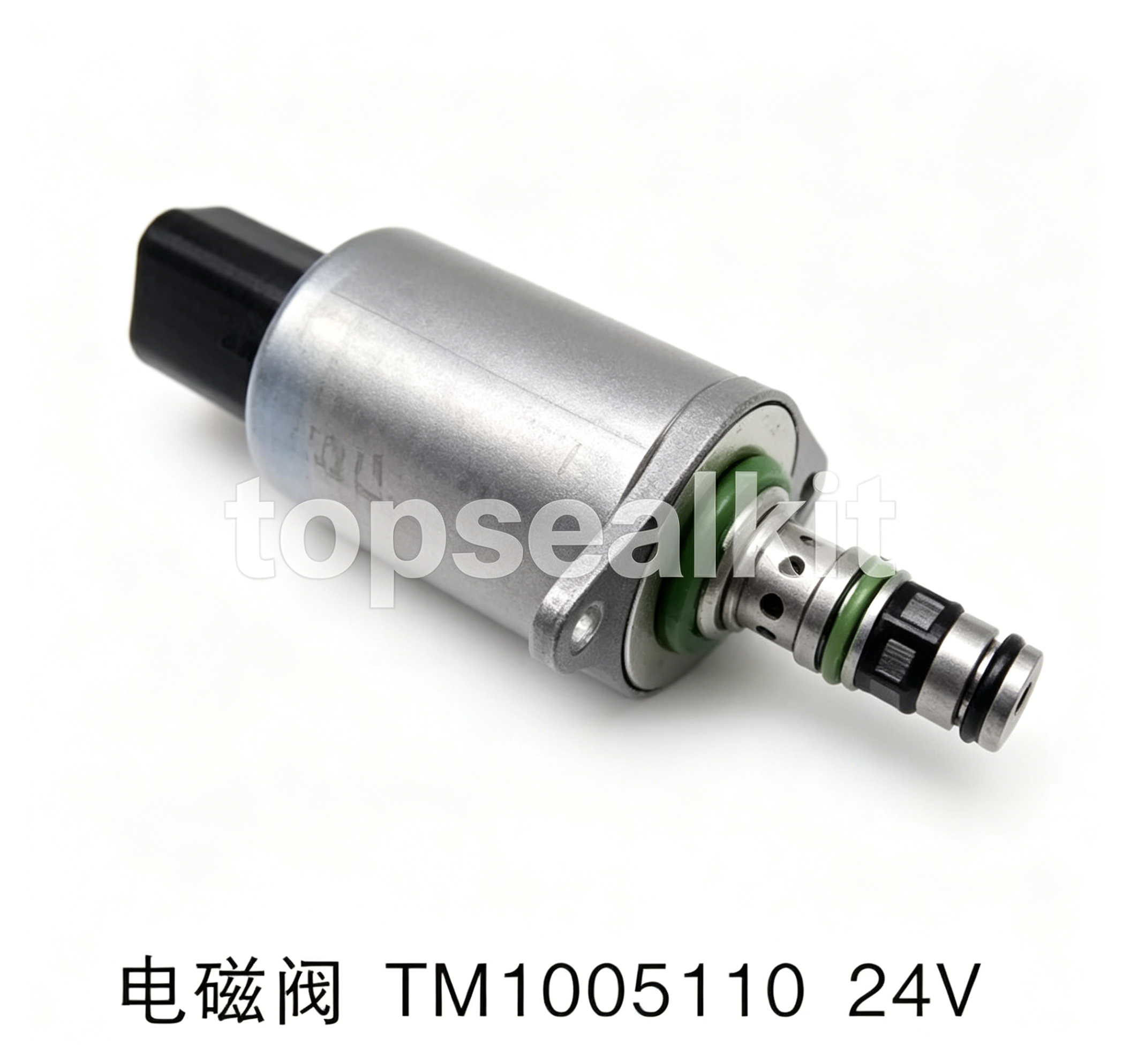

Solenoid Valve TM1005110 24V Excavator Hydraulic Directional Solenoid Valve

Description

Heavy-duty solenoid directional valve TM1005110 rated for 24V DC operation, designed for excavator and heavy equipment hydraulic control circuits. The TM1005110 valve features a precision-balanced spool design that delivers minimal pressure drop and excellent switching response times of less than 50 milliseconds. Built for continuous duty applications in demanding excavator environments with vibration, temperature extremes, and hydraulic pressure fluctuations. The solenoid coil uses high-temperature rated wire (Class H insulation) with epoxy encapsulation, ensuring reliable operation at ambient temperatures up to 80°C. Maximum operating pressure of 315 bar with rated flow of 35 L/min. The valve body is constructed from high-grade ductile iron with zinc-nickel plating for superior corrosion resistance in outdoor and marine excavation applications. Features a manual override function for mechanical actuation when electrical power is interrupted. Standard DIN 43650 electrical connector included. Compatible with standard petroleum-based and synthetic hydraulic oils. The TM1005110 is a direct replacement for this part number across multiple excavator brands.
