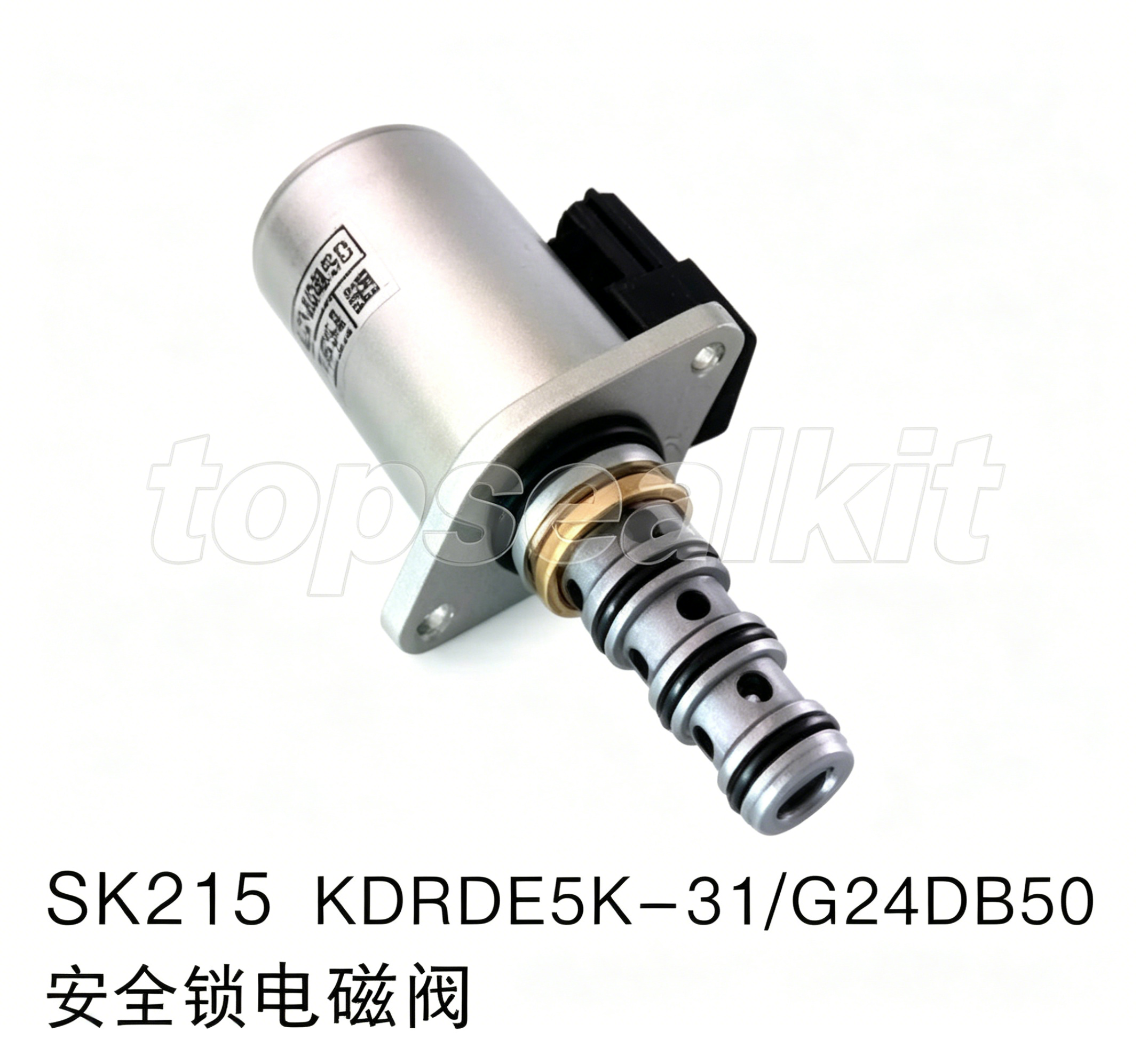

SK215 KDRDE5K-31 G24DB50 Safety Lock Solenoid Valve Excavator Hydraulic

Description

The KDRDE5K-31/G24DB50 safety lock solenoid valve is a critical safety component installed on SK215 excavators, designed to prevent unintended activation of hydraulic functions when certain safety conditions are not met. Safety lock solenoid valves are standard equipment on modern excavators and are typically controlled by the seat switch, boom safety lock lever, or the machine’s electronic control system. When the operator is not seated, or when the boom safety lock is engaged, the solenoid de-energizes and mechanically locks the pilot circuit, preventing any hydraulic function from being activated regardless of joystick position. This prevents accidents caused by accidental joystick contact or untrained personnel operating the machine. The KDRDE5K-31/G24DB50 designation indicates a specific configuration within the KDRDE series of safety lock valves, with G24DB50 specifying the 24V DC coil rating and specific connector type. The valve incorporates a mechanical detent that holds the spool in the locked position even when power is disconnected, providing a true fail-safe mechanism. The 24V rating ensures compatibility with standard excavator electrical systems. Regular inspection and testing of safety lock solenoid valves is essential for compliance with workplace safety regulations. Failure symptoms include hydraulic functions that remain active when the safety lock is engaged, or complete loss of hydraulic function due to a failed coil.
