Furukawa Fxj175 hydraulic breaker seal kits

Availability: In Stock

Product Specifications

Specification Details
Model Furukawa FXJ175 Hydraulic Breaker
Part Name Hydraulic Breaker Seal Kit, Hydraulic Hammer Seal Kit
Part Number 902203-920050, 902203-920060, 902203-920070
Tool Diameter 120MM
Certification ISO 9001
Packaging Details Bag or Box + Carton
Material TPU + HNBR + PTFE
Delivery Time 2-5 days upon payment confirmation
Position Furukawa Hydraulic Breaker System
Brand TOPSEALKIT, OEM or as Required
Payment Terms TT / Paypal / Western Union
Supply Ability 500 sets
MOQ 1 set

Guarantee Safe & Secure Checkout

Description

Product Specifications

Specification Details
Model Furukawa FXJ175 Hydraulic Breaker
Part Name Hydraulic Breaker Seal Kit, Hydraulic Hammer Seal Kit
Part Number 902203-920050, 902203-920060, 902203-920070
Tool Diameter 120MM
Certification ISO 9001
Packaging Details Bag or Box + Carton
Material TPU + HNBR + PTFE
Delivery Time 2-5 days upon payment confirmation
Position Furukawa Hydraulic Breaker System
Brand TOPSEALKIT, OEM or as Required
Payment Terms TT / Paypal / Western Union
Supply Ability 500 sets
MOQ 1 set

Parts list

ITEM PART NO. PART NAME Q’TY
101a 002203-100010 CYLINDER 1
A01 * *CYLINDER 1
A02 FXJ175-10104 *HELICOIL INSERT 4
A03 FXJ175-10105 *HELICOIL INSERT 6
A04 FXJ175-10104 *HELICOIL INSERT 4
102 002203-100030 CYLINDER LINER 1
103 002203-100040 BUFFER RING 1
104 002203-100050 PACKING 1
105 002203-100060 SCRAPER 1
106 FXJ175-10116 D-RING 7
107 002203-100070 DISTANCE WASHER 1
108 002203-100080 SEAL RETAINER 1
109 002203-100090 GLIDE RING 1
110 002203-100100 STEP SEAL 1
111 002203-100110 GLIDE RING 1
112 FXJ175-10216 DELTA RING 1
113 262031-00145 BACK-UP RING 1
114 HB10G-10120 PLUG 1
115 160011-00024 O-RING 3
116 084891-02000 GPF PLUG 13
117 160011-00011 O-RING 13
118 084891-03000 GPF PLUG 2
119 160011-00014 O-RING 2
120 084891-04000 GPF PLUG 2
121 160011-00018 O-RING 2
122 002203-100120 FRONT HOLDER 1
123 002203-100130 FRONT BUSH 1
124 002203-100140 STOP PIN 4
125 002407-100110 A-PLUG 4
126 002203-100150 ROD PIN 2
127 FXJ175-10125 KNOCK PIN 1
128 FXJ175-10121 BUSH 1
129 160011-00020 O-RING 2
130 002203-100170 BUSH 1
151 002203-110010 PISTON 1
181 FXJ175-20121 CHECK VALVE 1
182 002407-120010 PORT BLOCK 1
183 000500-220110 SPRING WASHER 6
184 102032-14045 SOCKET BOLT 6
185b 084869-06000 MALE CONNECTOR 1
B01 160011-00024 *O-RING 1
186 FXJ175-30113 CAP 1
187 084891-02000 GPF PLUG 2
188 160011-00011 O-RING 2
189 166152-02000 HOLLOW PLUG 1
381 002203-250010 MOIL POINT ROD 1
381 002203-250020 FLAT ROD 1
381 002203-250030 WEDGE POINT ROD 1
381 002203-250040 BALL POINT ROD 1
401 002203-300030 BACK HEAD 1
402 FXJ175-30103 CHARGING VALVE 1
403 FXJ175-30109 PLUG 1
404 160011-00006 O-RING 1
405 160011-00018 O-RING 1
406 FXJ175-10216 DELTA RING 1
407 002203-130060 CONNECTOR 2
408 161011-00029 O-RING 2
409 084891-06000 PLUG 2
410 160011-00024 O-RING 2
451 002203-360010 BOLT 4
452 002203-360020 WASHER 4
902203-920050 SEAL KIT (A) (R1)
902203-920060 SEAL KIT (B) (R2)
902203-920050 SEAL KIT (A)
1 002203-100040 *BUFFER RING 1
2 002203-100050 *PACKING 1
3 002203-100060 *SCRAPER 1
4 FXJ175-10116 *D-RING 7
5 002203-100090 *GLIDE RING 1
6 002203-100100 *STEP SEAL 1
7 002203-100110 *GLIDE RING 1
8 FXJ175-10216 *DELTA RING 2
9 262031-00145 *BACK-UP RING 1
10 HB10G-10120 *PLUG 1
11 160011-00024 *O-RING 3
12 160011-00020 *O-RING 2
13 FXJ175-10121 *BUSH 1
14 002203-100170 *BUSH 1
902203-920060 SEAL KIT(B)
1 160011-00011 *O-RING 15
2 160011-00014 *O-RING 2
3 160011-00018 *O-RING 3
4 002407-100110 *A-PLUG 4
5 160011-00024 *O-RING 3
6 160011-00006 *O-RING 1
7 161011-00029 *O-RING 2

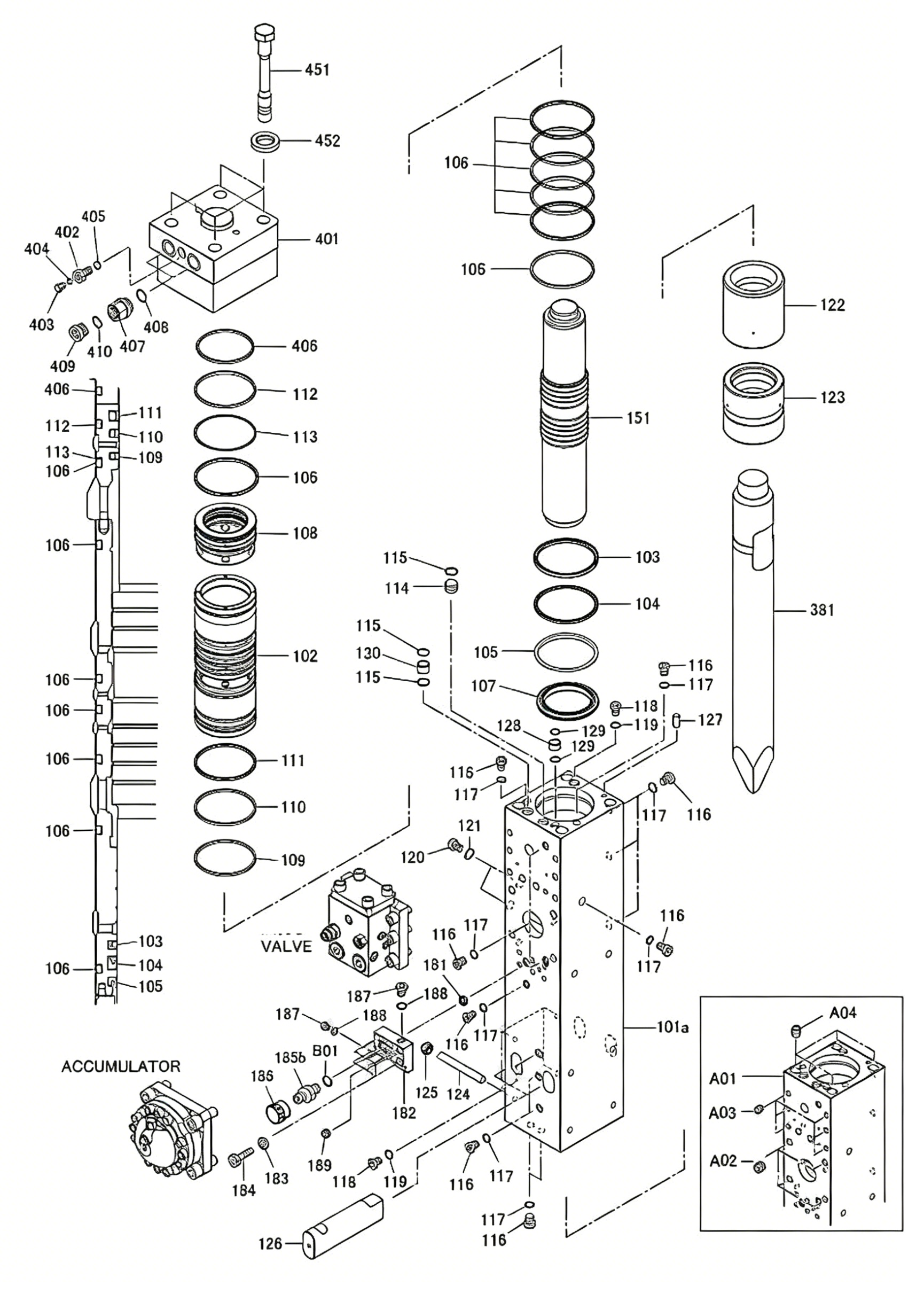

Exploded view

Product Description

Introducing the TOPSEALKIT Hydraulic Breaker Seal Kit for Furukawa FXJ175 Breakers

Ensure peak performance and extend the lifespan of your Furukawa FXJ175 hydraulic breaker with the TOPSEALKIT Hydraulic Breaker Seal Kit. Specifically engineered and manufactured by TOPSEALKIT, a trusted name in aftermarket heavy equipment parts, this seal kit provides a comprehensive solution for maintaining the efficiency and reliability of your crucial machinery.

Manufactured from premium TPU, HNBR, and PTFE materials and certified to ISO 9001 standards, this kit is built for durability and precision.

Compatible Part Numbers: 902203-920050, 902203-920060, 902203-920070


Why Choose the TOPSEALKIT Seal Kit for Furukawa FXJ175?

Hydraulic breakers operate under extreme pressure and demanding conditions, making the integrity of their seals paramount. The TOPSEALKIT seal kit is designed to meet or exceed OEM specifications, offering several key advantages:

  • Optimized Performance: Precision-engineered components ensure a perfect fit and seal, preventing hydraulic fluid leakage and maintaining consistent operating pressure for maximum breaking force.

  • Enhanced Durability: Manufactured from high-quality TPU, HNBR, and PTFE materials, these seals are built to withstand the rigorous environment of hydraulic breaking, resisting wear, heat, and pressure for extended service life.

  • Cost-Effective Maintenance: Proactive replacement of seals with a high-quality kit can prevent more significant damage and costly repairs down the line, saving you time and money.

  • Perfect Compatibility: This kit is specifically designed for the Furukawa FXJ175 hydraulic breaker (120MM tool), guaranteeing seamless integration and optimal function.

  • Reliable Quality from TOPSEALKIT: TOPSEALKIT is renowned for its commitment to quality and precision in manufacturing aftermarket heavy equipment parts, giving you confidence in your purchase.


What’s Included?

The TOPSEALKIT Hydraulic Breaker Seal Kit for Furukawa FXJ175 includes all the necessary seals to fully service your hydraulic breaker, ensuring a complete and effective repair. Each component is meticulously crafted to deliver a secure and lasting seal.


Fast & Flexible Shipping

With a short 2-5 day delivery time upon payment confirmation and a low MOQ of just 1 set, you can get your breaker back in operation quickly. We accept TT / Paypal / Western Union for your convenience.


Don’t let worn seals compromise the efficiency and productivity of your Furukawa FXJ175 hydraulic breaker. Invest in the TOPSEALKIT Hydraulic Breaker Seal Kit to ensure consistent power, reliable operation, and prolonged equipment life.

Ready to optimize your Furukawa FXJ175’s performance? Contact us today to learn more or to place your order for the TOPSEALKIT Hydraulic Breaker Seal Kit!


Tags: Hydraulic Breaker Seal Kit, Hydraulic Hammer Seal Kit, Furukawa Hydraulic Breaker Seal Kit, Hydraulic Breaker Repair Seal Kit
