Product Description
Brand: Topsealkit
Model Compatibility: DAEMO DMB360, B360, DMB3600 Hydraulic Breaker

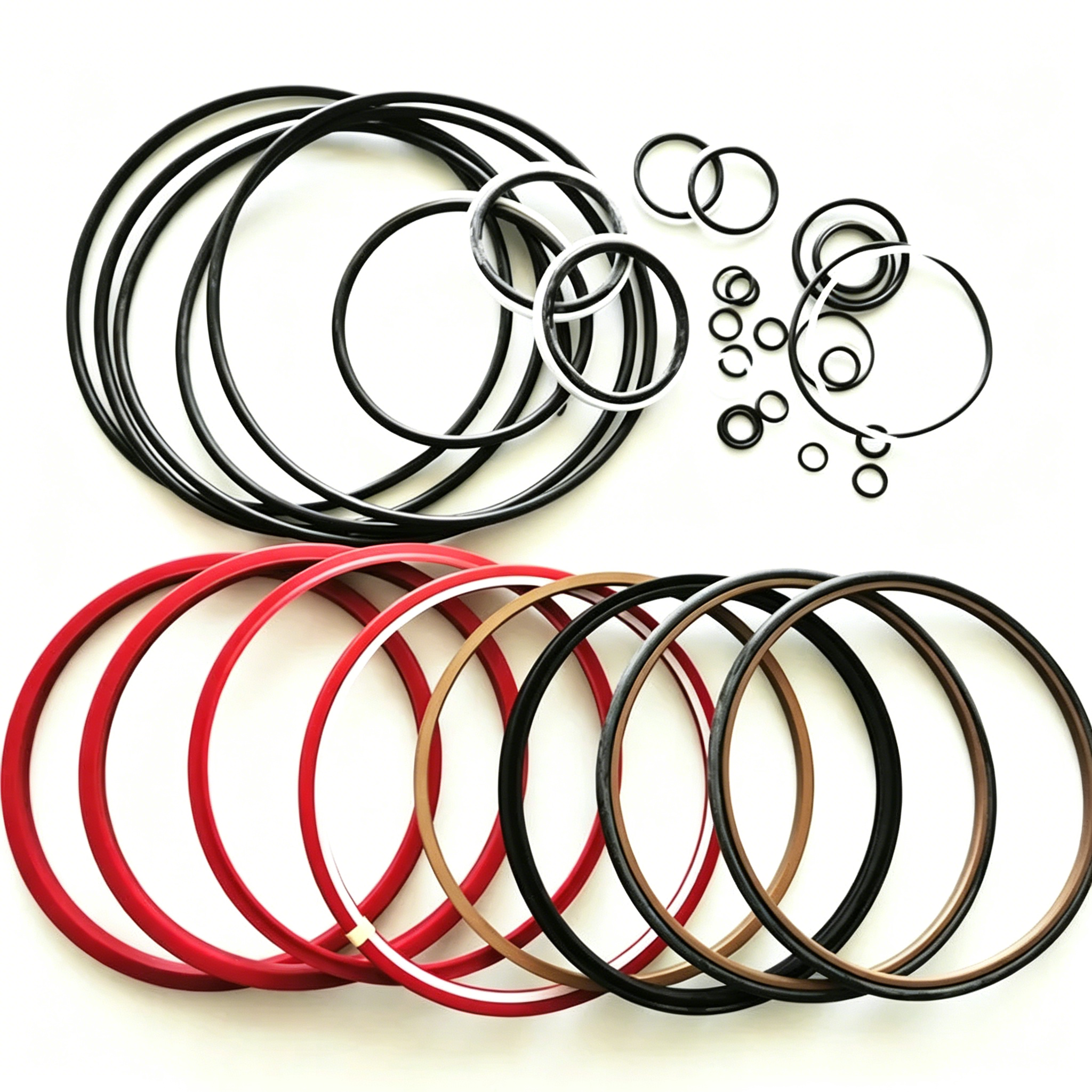

Part Name: Hydraulic Breaker Seal Kit
Part Number: B36480010
Position: DAEMO DMB360 / B360 / DMB3600 Hydraulic Cylinder
Working Tool Diameter: 150 mm
Material: TPU + NBR + PTFE
Certification: ISO 9000
Packaging Details: Bag or Box + Carton
Delivery Time: 2–5 days after payment confirmation
Brand Option: Topsealkit, OEM, or as required
Payment Terms: TT / PayPal / Western Union
Supply Ability: 500 sets
MOQ: 1 set

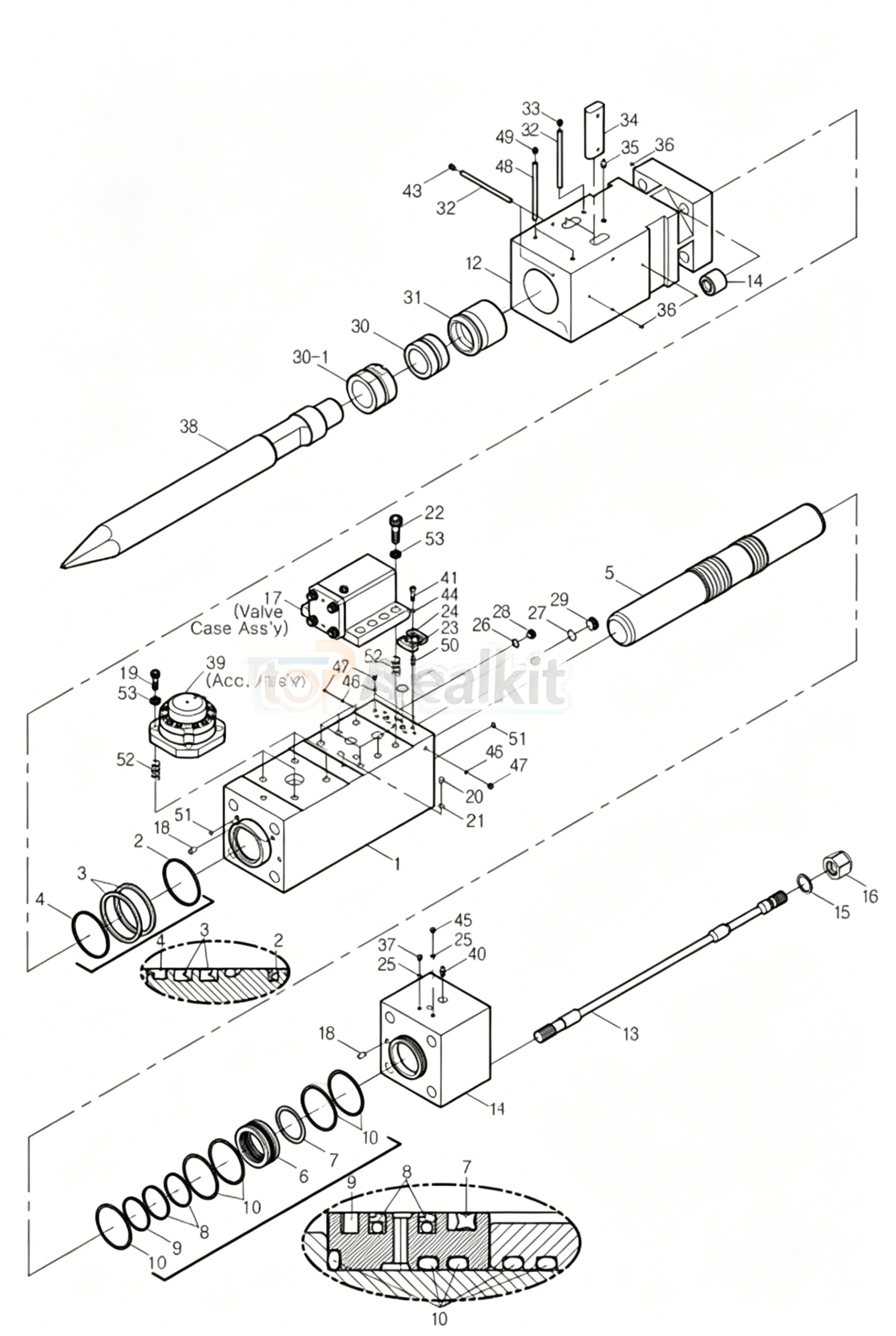

Parts list
| DMB360 Main Body Parts List | |||
| No. | Parts No. | Parts Name | Q’ty |
| 1 | B36410010 | CYLINDER | 1 |
| 2 | 007006-15502 | RING, BUFFER | 1 |
| 3 | 007002-15701 | U-PACKING | 2 |
| 4 | 007003-15701 | SEAL, DUST | 1 |
| 5 | B36311100000 | PISTON | 1 |
| 6 | B36211200001 | BUSH, CYLINDER | 1 |
| 7 | 007007-15204 | RING, QUAD | 1 |
| 8 | 007008-15202 | SEAL, STEP | 2 |
| 9 | 007006-15200 | RING, BUFFER | 1 |
| 10 | 007001-1850G | O-RING | 5 |
| 11 | B36410020 | CAP, HEAD | 1 |
| 12 | B36410130 | HEAD, FRONT | 1 |
| 13 | B36410090 | BOLT, THROUGH | 4 |
| 14 | B36410051 | NUT, WOOD-RUFF FOR T/BOLT | 4 |
| 15 | B36316400000 | WASHER, FOR T/BOLT | 4 |
| 16 | B36316200000 | NUT, HEX. FOR T/BOLT | 4 |
| 17 | B36390081 | VALVE CASE ASS’Y | 1 |
| 18 | B22211120000 | PIN, KNOCK | 2 |
| 19 | 013020-300700 | BOLT, SOCKET | 4 |
| 20 | 004012-C2121 | PLUG, HEX. SOCKET | 1 |
| 21 | 007001-0100P | O-RING | 1 |
| 22 | 013020-300800 | BOLT, SOCKET | 8 |
| 23 | B50117000000 | FLANGE | 2 |
| 24 | B50117100000 | FLANGE PLUG | 2 |
| 25 | 007001-0140P | O-RING | 2 |
| 26 | 007001-0460P | O-RING | 1 |
| 27 | 007001-0280P | O-RING | 1 |
| 28 | 004012-C2483 | PLUG, HEX. SOCKET | 1 |
| 29 | 004012-C2304 | PLUG, HEX. SOCKET | 1 |
| 30 | B36410060 | COVER, FRONT(SLIDING) | 1 |
| 30-1 | B36410070 | COVER, FRONT(TIGHT) | 1 |
| 31 | B36410110 | RING, THRUST | 1 |
| 32 | B44212600000 | PIN, STOP | 3 |
| 33 | 017002-00070 | PLUG, SCREW+RUBBER | 1 |
| 34 | B36410141 | PIN, CHISEL | 2 |
| 35 | 004013-141008 | GREASE NIPPLE | 1 |
| 36 | 004012-A0060 | PLUG, HOLLOW | 3 |
| 37 | B00010050 | AIR CAP ASS’Y | 1 |
| 38 | B36312120000 | CHISEL(MOIL) | 1 |
| 38-1 | B36312130000 | CHISEL(WEDGE) | 1 |
| 38-2 | B36312140000 | CHISEL(CONICAL) | 1 |
| 38-3 | B36312110000 | CHISEL(BLUNT) | 1 |
| 39 | B36390090 | ACC. ASS’Y | 1 |
| 40 | 00605A-000002 | SCREW COUPLING | 1 |
| 41 | 013029-160654 | BOLT, SOCKET | 8 |
| 42 | 007001-027AN | O-RING | 2 |
| 43 | 017002-00070A | PLUG, SCREW+RUBBER | 2 |
| 44 | 015E10-16000 | WASHER, NORD-LOCK | 8 |
| 45 | 004012-C1090 | PLUG, HEX. SOCKET | 1 |
| 46 | 007001-0110P | O-RING | 4 |
| 47 | 004012-C1060 | PLUG, HEX. SOCKET | 4 |
| 48 | B36312600000 | STOP PIN | 2 |
| 49 | 017002-00080 | PLUG, SCREW+RUBBER | 2 |
| 50 | 019B10-160240 | HELI COIL | 8 |
| 51 | 007001-0110P | O-RING | 4 |
| 52 | 019B10-300240 | HELI COIL | 12 |
| K1 | B36480010 | SEAL KIT, ALL(K2+K3+K4) | 1 |
| K2 | B36311710A01 | SEAL KIT, CYLINDER | 1 |
| K3 | B36480020 | SEAL KIT, VALVE CASE | 1 |
| K4 | B45111750A00 | SEAL KIT, ACCUMULATOR | 1 |
| T1 | B36490040 | THROUGH BOLT SET | 1 |
Application chart
Why Choose Topsealkit?
✅ Best Quality – Premium TPU, NBR, and PTFE materials deliver superior sealing performance and durability.
✅ Market-Focused Design – Special packaging and top quality help you gain more customers and better profit.
✅ Easy Installation – Every seal has its correct position, making installation simple and professional.
✅ Long Lifetime – Special treatment helps seals resist oxidation, water, and oil for extended service.
✅ Sponge Protection – Protective sponge helps seals resist oxidation and stay effective longer.
✅ OEM-Compatible – Designed to meet or exceed OEM standards.
Compatible Models
This seal kit fits the following DAEMO hydraulic breaker models:
-
DAEMO DMB360
-
DAEMO B360
-
DAEMO DMB3600
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | B36480010 |
| Part Name | Hydraulic Breaker Seal Kit |
| Compatible Models | DAEMO DMB360, B360, DMB3600 |
| Working Tool Diameter | 150 mm |
| Material | TPU + NBR + PTFE |
| Position | Hydraulic Cylinder |
| Certification | ISO 9000 |
Additional Seal Kits & Parts Available
We also supply a full range of seal kits and replacement parts for excavators and hydraulic breakers, including:
-
Hydraulic breaker diaphragms / membranes
-
Coil springs for accumulator
-
Diaphragm supports
-
Hydraulic breaker seal kits for various brands
-
Hydraulic cylinder seal kits (Boom, Arm, Bucket)
-
Center joint seal kit
-
Track adjuster seal kit
-
Tensioner cylinder seal kit
-
Gear pump seal kit
-
Hydraulic pump seal kit
-
Travel pump seal kit
-
Control valve seal kit
-
Swing pump seal kit
-
O-ring kits
-
Floating seal kits
-
Rotary bearing seals
Compatible hammer brands we support:
DAEMO, Soosan, Furukawa, Atlas Copco, Epiroc, Montabert, Komatsu, NPK, MSB, Toku, Toyo, Rammer, Krupp, Sandvik, and more.
Fast Shipping & Reliable Service
-
Fast handling: 2–5 days delivery after payment
-
Global shipping available
-
Professional packaging to ensure product safety
