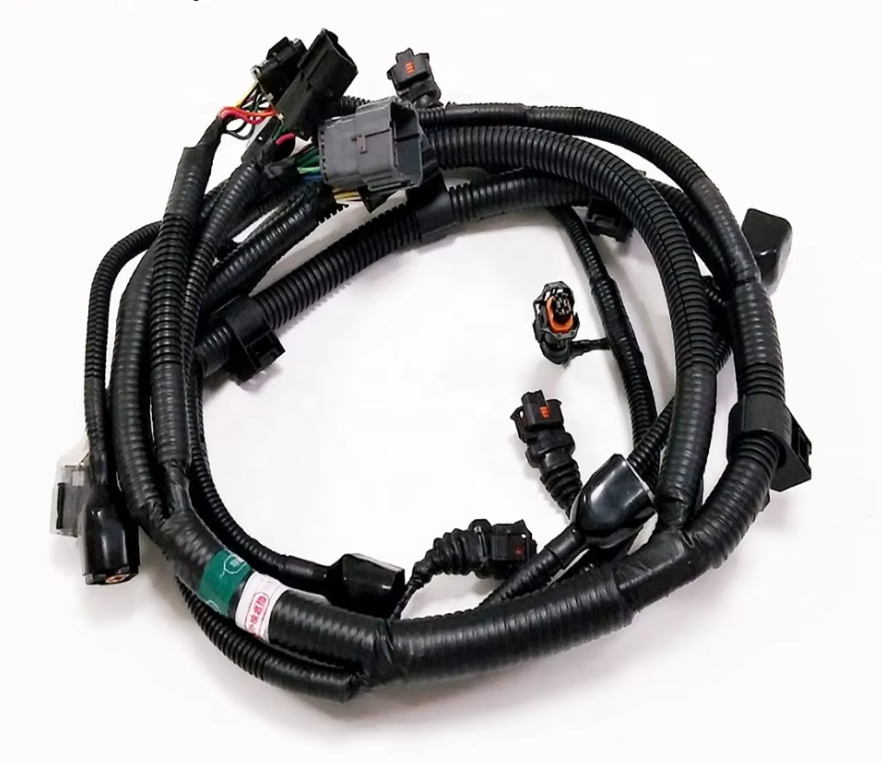

The ME444715 engine wiring harness is an OEM-quality replacement electrical assembly engineered specifically for Kato HD820V excavators equipped with the Mitsubishi 4M50-TLE3A electronic fuel injection (EFI) engine. This genuine-grade wiring harness serves as the complete electrical nervous system connecting the Engine Control Module to every sensor, actuator, and monitoring device mounted on the 4M50 engine. When your Kato HD820V shows symptoms of electrical malfunction — check engine lights, hard starting, power loss, or fault codes — the ME444715 is often the definitive solution.
Why the Mitsubishi 4M50-TLE3A Engine in Kato HD820V Demands Quality Wiring
The Mitsubishi 4M50-TLE3A is one of the most reliable diesel engines deployed in mid-to-large excavators worldwide. Its electronically controlled fuel injection system delivers excellent fuel efficiency and power output, but this precision depends entirely on flawless electrical communication between sensors and the ECM. The engine wiring harness is the critical link that makes this communication possible.
In Kato HD820V excavators operating on construction sites, quarries, and mining operations, the 4M50-TLE3A engine powers digging, hydraulic, and travel functions. Electrical faults in the engine wiring harness cause real operational consequences:
- Engine derating (limp mode) reducing digging force by up to 40% — the engine ECM enters protection mode
- No-start conditions stranding equipment on-site and causing costly delays
- Excessive black smoke from uncontrolled fuel injection due to faulty sensor readings
- Automatic shutdowns triggered by false over-temperature or low oil pressure readings
- Increased fuel consumption from incorrect air-fuel mixture ratios
- Irreversible ECM damage from voltage spikes caused by harness short circuits
ME444715 Part Number Specifications
| Attribute | Specification |
|---|---|
| Part Number | ME444715 |
| Engine Platform | Mitsubishi 4M50-TLE3A |
| Fuel System | Electronic Fuel Injection (Electronic Control Module managed) |
| Excavator Model | Kato HD820V |
| Quality Grade | OEM Original Quality |
| Installation Type | Direct plug-and-play replacement — no modifications required |
| Conductor Material | Oxygen-free copper, high-flex stranded conductors |
| Insulation Rating | High-temperature rated, oil-resistant, vibration-damping jacket |
| Connector System | OE-specification weatherproof multi-pin connectors |
| ECM Compatibility | Directly compatible with Mitsubishi 4M50 ECM wiring |
| Sensor Circuits | Crankshaft position, camshaft position, mass airflow, O2, coolant temp, intake temp |
| Actuator Circuits | Fuel injectors, turbo wastegate, EGR valve, intake throttle |
Diagnosing ME444715 Harness Failure
Electrical problems are deceptive. Here’s a systematic approach to confirming the ME444715 harness as the root cause before replacement:
- Pull diagnostic trouble codes (DTCs) using a compatible scanner. Document all sensor circuit open/short codes and their locations on the 4M50-TLE3A engine.
- Visual inspection — inspect every visible section of the engine harness for chafed insulation near cable ties, melted sections near the exhaust manifold, corroded pins at the ECM bulkhead, and broken wire strands.
- Voltage drop test on key power and ground circuits. Any drop exceeding specifications indicates resistance buildup in the conductor.
- Wiggle test — with the engine running and scanner monitoring live data, gently manipulate the harness. Sensor values that cut in and out confirm broken wire strands.
- Oscilloscope check — examine sensor signal waveforms at the ECM connectors. Jagged or distorted waveforms confirm harness interference or high-resistance faults.
Installation Guide for ME444715 on Kato HD820V
- Safety first: Disconnect both battery terminals (negative first). Wait 10 minutes for ECM capacitor discharge.
- Access the engine bay: Remove Kato HD820V side panels and engine cover to fully expose the existing harness routing.
- Photograph before removal: Document every connector position, routing path, cable tie location, and ground strap attachment. This documentation is invaluable during reinstallation.
- Label all connectors: Apply numbered labels to each of the 20+ connectors on the 4M50-TLE3A engine harness before disconnecting.
- Disconnect and remove: Carefully release each connector from the ECM and engine sensors. Work methodically — rushing leads to errors.
- Route the new ME444715: Follow the exact original path. Secure with OEM clips — never route near exhaust manifolds or turbocharger hot sections.
- Protect connectors: Apply dielectric grease to all electrical connectors before mating to prevent moisture ingress and corrosion.
- Verify routing: Confirm no wires contact bare metal edges or hot engine surfaces before final securing.
- Reconnect batteries: Positive terminal first, then negative.
- Startup and diagnostic: Start the Kato HD820V and scan for codes. Clear any stored fault codes. Monitor the dashboard throughout warm-up.
- Load test: Operate the excavator through full cycle operations to confirm normal power, hydraulic response, and engine performance.
ME444715 vs Aftermarket Engine Harnesses
Aftermarket engine wiring harnesses consistently underperform in demanding excavator applications:
- Incorrect wire gauge causes voltage drop and erroneous sensor readings in the 4M50-TLE3A EFI system
- Substandard insulation melts or cracks in the extreme heat of the engine compartment
- Poor connector quality leads to moisture ingress, corrosion, and intermittent faults
- Wrong connector pinouts can send incorrect signals to the ECM — potentially causing severe engine damage
- No EMI shielding results in radio interference and sensor signal corruption
The ME444715 OEM-quality harness delivers precise wire specifications, correct connector geometry, proper shielding, and reliable performance backed by manufacturing quality standards.
Need the Right Harness for Your Kato HD820V?
Not sure if the ME444715 matches your excavator’s serial number and engine configuration? Our technical team can verify compatibility before you order. Contact our parts specialists for expert assistance and competitive pricing.
Browse our complete catalog of Kato excavator electrical components — wiring harnesses, sensors, solenoid valves, ECM units, and more for HD820V, HD820R, HD1430R, HD1430-3, and all major Kato excavator models.
