Topsealkit

Furukawa Fxj475 hydraulic breaker seal kit

Availability: In Stock

Product Specifications

Specification Details
Model Furukawa FXJ475 Hydraulic Breaker
Part Name Hydraulic Breaker Seal Kit, Hydraulic Hammer Seal Kit
Part Number 902409-920050 (A), 902409-920060 (B), 902409-920070 (C), 902409-920080 (D), 902407-920090 (E)
Tool Diameter 170MM
Certification ISO 9001
Packaging Details Bag or Box + Carton
Material TPU + HNBR + PTFE
Delivery Time 2-5 days upon payment confirmation
Position Furukawa Hydraulic Breaker System
Brand TOPSEALKIT, OEM or as Required
Payment Terms TT / Paypal / Western Union
Supply Ability 500 sets
MOQ 1 set

Guarantee Safe & Secure Checkout

Category:

Description

Product Specifications

Specification Details
Model Furukawa FXJ475 Hydraulic Breaker
Part Name Hydraulic Breaker Seal Kit, Hydraulic Hammer Seal Kit
Part Number 902409-920050 (A), 902409-920060 (B), 902409-920070 (C), 902409-920080 (D), 902407-920090 (E)
Tool Diameter 170MM
Certification ISO 9001
Packaging Details Bag or Box + Carton
Material TPU + HNBR + PTFE
Delivery Time 2-5 days upon payment confirmation
Position Furukawa Hydraulic Breaker System
Brand TOPSEALKIT, OEM or as Required
Payment Terms TT / Paypal / Western Union
Supply Ability 500 sets
MOQ 1 set

Parts list

ITEM PART NO. PART NAME Q’TY
101 002409-100010 CYLINDER 1
A01 * CYLINDER 1
A02 FXJ475-10105 HELI-COIL INSERT 8
A03 FXJ475-10104 HELI-COIL INSERT 4
A04 002409-900010 HELI-COIL INSERT 4
102 002409-100030 CYLINDER LINER 1
103 002409-100040 U-PACKING 1
104 002409-100050 BUFFER RING 1
105 002409-100060 SCRAPER 1
106 002409-100070 DUAL SEAL 8
107 002409-100080 DISTANCE WASHER 1
108 002409-100090 SEAL RETAINER 1
109 002409-100100 GLIDE RING 1
110 002409-100110 STEP SEAL 1
111 002409-100120 GLIDE RING 1
112 FXJ47510120 PLUG 1
113 160011-00040 O-RING 3
114 160011-00018 O-RING 2
115 084891-06000 PLUG 1
116 160011-00024 O-RING 1
117 084891-02000 PLUG 8
118 160011-00011 O-RING 8
119 084891-03000 PLUG 6
120 160011-00014 O-RING 6
121 084891-04000 PLUG 2
122 002409-100130 FRONT HOLDER 1
123 002409-100140 FRONT BUSH 1
124 002409-100150 STOP PIN 4
125 002407-100110 A-PLUG 4
126 002409-100160 ROD PIN 2
127 001300-20118 KNOCK PIN 1
128 FXJ475-10121 BUSH 1
129 160011-00029 O-RING 2
130 FXJ475-10121 BUSH 1
151 002409-110010 PISTON 1
181 FXJ475-20121 CHECK VALVE 1
182 002407-120010 PORT BLOCK 1
183 000500-220110 SPRING WASHER 6
184 102032-14045 SOCKET BOLT 6
185b 084869-06000 MALE CONNECTOR 1
B01 160011-00024 *O-RING 1
186 FXJ475-30113 CAP 1
187 084891-02000 GPF PLUG 2
188 160011-00011 O-RING 2
189 166152-02000 HOLLOW PLUG 1
381 002409-250010 MOIL POINT ROD 1
381 002409-250020 FLAT ROD 1
381 002409-250030 WEDGE POINT ROD 1
381 002409-250040 BALL POINT ROD 1
401 002409-300020 BACK HEAD 1
402 FXJ475-30103 CHARGING VALVE 1
403 FXJ475-30109 PLUG 1
404 160011-00006 O-RING 1
405 160011-00018 O-RING 1
406 002409-100070 DUAL SEAL 1
407 084891-10000 PLUG 2
408 160011-00029 O-RING 2
409 084891-12000 PLUG 2
410 160011-00038 O-RING 2
411 002409-130040 CONNECTOR 2
412 161011-00044 O-RING 2
413 FXJ475-30114 STICKER -2
451 002409-360010 BOLT 4
452 002409-360020 WASHER 4
902409-920050 SEAL KIT (A) (R1)
902409-920060 SEAL KIT (B) (R2)
902409-920050 SEAL KIT (A)
851 002409-100040 *U-PACKING 1
852 002409-100050 *BUFFER RING 1
853 002409-100060 *SCRAPER 1
854 002409-100070 *DUAL SEAL 9
855 002409-100100 *GLIDE RING 1
856 002409-100110 *STEP SEAL 1
857 002409-100120 *GLIDE RING 1
858 FXJ475-10120 *PLUG 1
859 160011-00040 *O-RING 3
860 160011-00029 *O-RING 2
861 FXJ475-10121 *BUSH 1
862 FXJ475-10121 *BUSH 1
902409-920060 SEAL KIT (B)
851 160011-00018 *O-RING 3
852 160011-00024 *O-RING 2
853 160011-00011 *O-RING 10
854 160011-00014 *O-RING 6
855 002407-100110 *A-PLUG 4
856 160011-00006 *O-RING 1
857 160011-00029 *O-RING 2
858 160011-00038 *O-RING 2
859 161011-00044 *O-RING 2
FXJ475-70001 ACCUMULATOR ASSEMBLY
501 FXJ475-70101 *ACCUMULATOR COVER 1
502 FXJ475-70102 *ACCUMULATOR BODY 1
503 FXJ475-70111 *DIAPHRAGM 1
504 FXJ475-70219 *FACE SEAL 1
505 102033-20060 *SOCKET BOLT 16
506 FXJ475-70115 *SOCKET BOLT 4
507 007120-70134 *VALVE 1
508 007010-70029 *CAP 1
509 007010-70030 *PLUG 1
510 160011-00005 *O-RING 1
511 160011-00014 *O-RING 2
902409-920070 SEAL KIT (C) (R3)

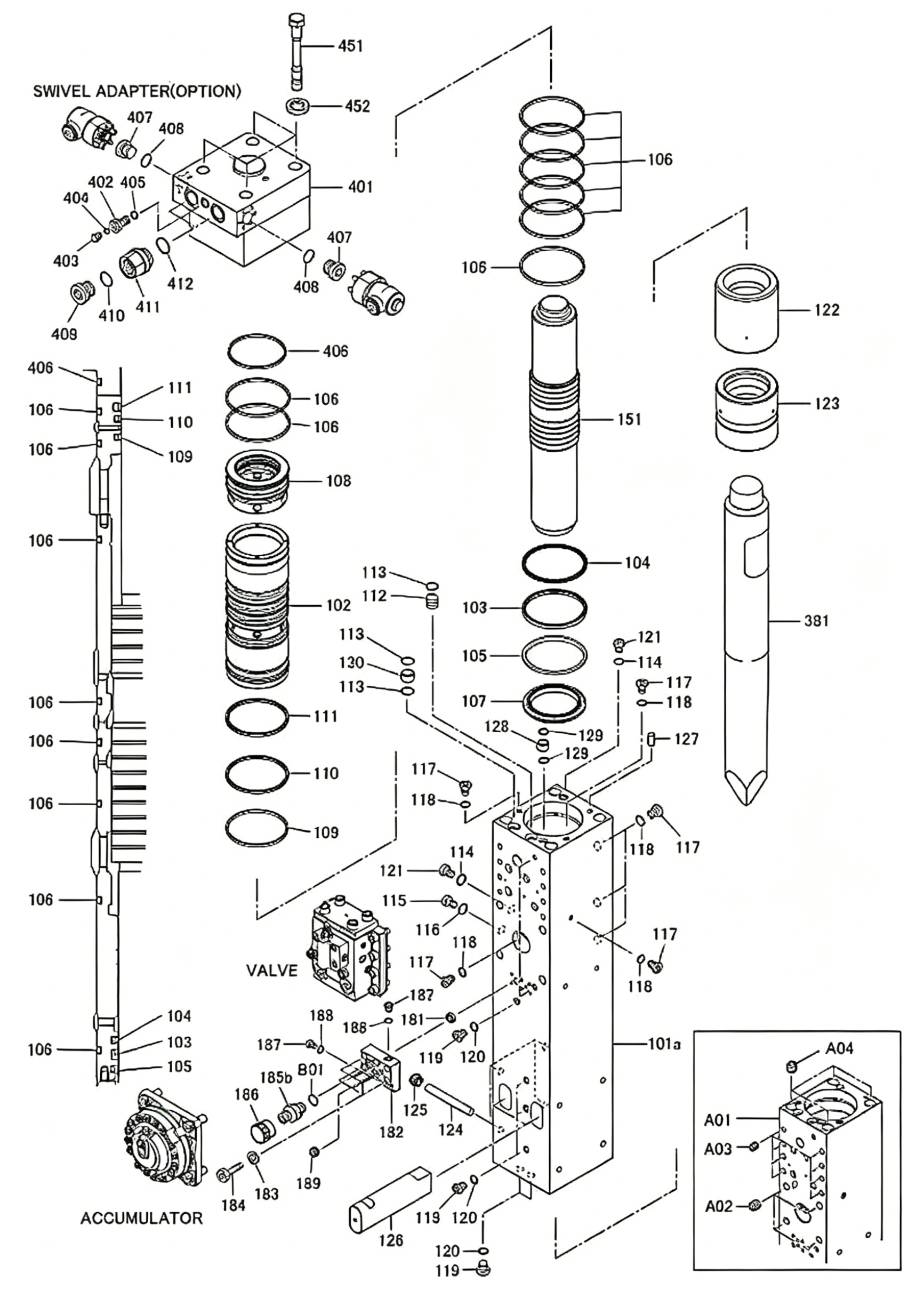

Exploded view

Product Description

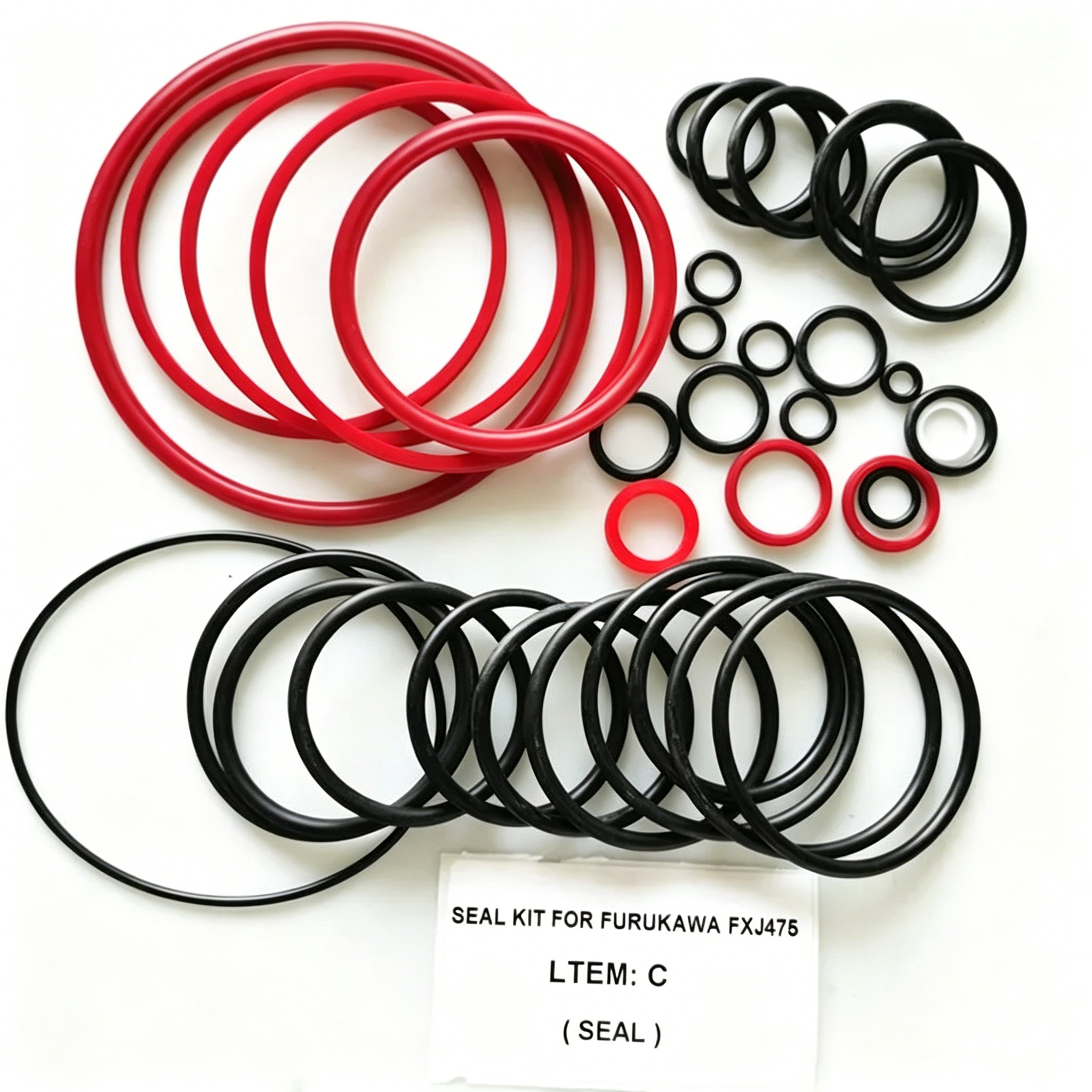

Introducing the TOPSEALKIT Hydraulic Breaker Seal Kit for Furukawa FXJ475 Breakers

Ensure peak performance and extend the lifespan of your Furukawa FXJ475 hydraulic breaker with the TOPSEALKIT Hydraulic Breaker Seal Kit. Specifically engineered and manufactured by TOPSEALKIT, a trusted name in aftermarket heavy equipment parts, this seal kit provides a comprehensive solution for maintaining the efficiency and reliability of your crucial machinery.

Manufactured from premium TPU, HNBR, and PTFE materials and certified to ISO 9001 standards, this kit is built for durability and precision.

Compatible Part Numbers:

  • 902409-920050 (A)

  • 902409-920060 (B)

  • 902409-920070 (C)

  • 902409-920080 (D)

  • 902407-920090 (E)


Why Choose the TOPSEALKIT Seal Kit for Furukawa FXJ475?

Hydraulic breakers operate under extreme pressure and demanding conditions, making the integrity of their seals paramount. The TOPSEALKIT seal kit is designed to meet or exceed OEM specifications, offering several key advantages:

  • Optimized Performance: Precision-engineered components ensure a perfect fit and seal, preventing hydraulic fluid leakage and maintaining consistent operating pressure for maximum breaking force.

  • Enhanced Durability: Manufactured from high-quality TPU, HNBR, and PTFE materials, these seals are built to withstand the rigorous environment of hydraulic breaking, resisting wear, heat, and pressure for extended service life.

  • Cost-Effective Maintenance: Proactive replacement of seals with a high-quality kit can prevent more significant damage and costly repairs down the line, saving you time and money.

  • Perfect Compatibility: This kit is specifically designed for the Furukawa FXJ475 hydraulic breaker (170MM tool), guaranteeing seamless integration and optimal function.

  • Reliable Quality from TOPSEALKIT: TOPSEALKIT is renowned for its commitment to quality and precision in manufacturing aftermarket heavy equipment parts, giving you confidence in your purchase.


What’s Included?

The TOPSEALKIT Hydraulic Breaker Seal Kit for Furukawa FXJ475 includes all the necessary seals to fully service your hydraulic breaker, ensuring a complete and effective repair. Each component is meticulously crafted to deliver a secure and lasting seal.


Fast & Flexible Shipping

With a short 2-5 day delivery time upon payment confirmation and a low MOQ of just 1 set, you can get your breaker back in operation quickly. We accept TT / Paypal / Western Union for your convenience.


Supply Capacity

With a supply ability of 500 sets, we can meet both small and bulk orders reliably.


Don’t let worn seals compromise the efficiency and productivity of your Furukawa FXJ475 hydraulic breaker. Invest in the TOPSEALKIT Hydraulic Breaker Seal Kit to ensure consistent power, reliable operation, and prolonged equipment life.

Ready to optimize your Furukawa FXJ475’s performance? Contact us today to learn more or to place your order for the TOPSEALKIT Hydraulic Breaker Seal Kit!
