Description
Product Specifications
| Specification | Details |
|---|---|
| Model | Furukawa FX35 Hydraulic Breaker |
| Part Name | Hydraulic Breaker Seal Kit, Hydraulic Hammer Seal Kit |
| Part Number | 902307-920010 |
| Tool Diameter | 52MM |
| Certification | ISO 9001 |
| Packaging Details | Bag or Box + Carton |
| Material | TPU + HNBR + PTFE |
| Delivery Time | 2-5 days upon payment confirmation |
| Position | Furukawa Hydraulic Breaker System |
| Brand | TOPSEALKIT, OEM or as Required |
| Payment Terms | TT / Paypal / Western Union |
| Supply Ability | 50,000 sets |
| MOQ | 1 set |
Parts list
| ITEM | PART NO. | PART NAME | Q’TY |
| 101a | 002307-100010 | CYLINDER | 1 |
| A01 | * | *CYLINDER | 1 |
| A02 | FX35-20103 | *BUSH,FRONT | 1 |
| A03 | 264020-00070 | *RING,SNAP | 1 |
| 102 | 002307-100030 | LINER,CYLINDER | 1 |
| 103 | FX35-10106 | SEAL,DUST | 1 |
| 104 | FX35-10107 | PACKING,U | 1 |
| 105 | 002307-100040 | RETAINER,SEAL | 1 |
| 106 | 002307-100050 | SEAL,STEP | 1 |
| 107 | 002307-100060 | RING,QUAD | 1 |
| 108 | 002307-100070 | RING,BACK-UP | 1 |
| 109 | 161021-00070 | O-RING | 6 |
| 110 | FX35-10120 | PLUG | 1 |
| 111 | 160011-10010 | O-RING | 1 |
| 112 | FX35-10122 | PLUG | 3 |
| 113 | 160011-00012 | O-RING | 3 |
| 114 | FX35-10220 | PLUG | 1 |
| 115 | 160011-00016 | O-RING | 1 |
| 116 | FX35-10231 | ADJUSTER | 1 |
| 117 | FX35-10233 | NUT,SEAL | 1 |
| 118 | FX35-10532 | WASHER,SEAL | 1 |
| 119 | 084861-04000 | CONNECTOR,MALE | 2 |
| 120 | 084898-04000 | CAP,UNION | 2 |
| 121 | 160011-00018 | O-RING | 3 |
| 122 | 084891-01000 | PLUG,GPF | 2 |
| 123 | 160011-00008 | O-RING | 2 |
| 124 | 084891-02000 | PLUG,GPF | 5 |
| 125 | 160011-00011 | O-RING | 5 |
| 126 | 084891-03000 | PLUG,GPF | 4 |
| 127 | 160011-00014 | O-RING | 4 |
| 128 | 084891-04000 | PLUG,GPF | 1 |
| 129 | FX35-20206 | PIN,ROD | 1 |
| 130 | 154037-10060 | PIN,SPRING | 1 |
| 131 | 170312-00000 | NIPPLE,GREASE | 1 |
| 151 | 002307-110010 | PISTON | 1 |
| 201 | 002307-130010 | VALVE | 1 |
| 381 | FX35-25111 | ROD,FLAT | 1 |
| 381 | FX35-25113 | POINT,MOIL | 1 |
| 381 | FX35-25114 | POINT,WEDGE | 1 |
| 381 | FX35-25115 | ROD,CONE | 1 |
| 381 | FX35-25116 | ROD,BALLPOINT | 1 |
| 401 | 002307-300010 | HEAD,BACK | 1 |
| 402 | 102032-18150 | BOLT,SOCKET | 4 |
| 403 | 161021-00070 | O-RING | 1 |
| 404 | FX35-30103 | VALVE,CHARGING | 1 |
| 405 | FX35-30109 | PLUG | 1 |
| 406 | 160011-00006 | O-RING | 1 |
| 407 | 160011-00018 | O-RING | 1 |
| 902307-920010 | SEAL KIT | 1 | |
| 851 | FX35-10106 | *SEAL,DUST | 1 |
| 852 | FX35-10107 | *PACKING,U | 1 |
| 853 | 002307-100050 | *SEAL,STEP | 1 |
| 854 | 002307-100060 | *RING,QUAD | 1 |
| 855 | 002307-100070 | *RING,BACK-UP | 1 |
| 856 | 161021-00070 | *O-RING | 7 |
| 857 | FX35-10120 | *PLUG | 1 |
| 858 | 160011-10010 | *O-RING | 1 |
| 859 | FX35-10122 | *PLUG | 3 |
| 860 | 160011-00012 | O-RING | 3 |
| 861 | FX35-10220 | *PLUG | 1 |
| 862 | 160011-00016 | *O-RING | 1 |
| 863 | FX35-10532 | *WASHER,SEAL | 1 |
| 864 | 160011-00018 | *O-RING | 4 |
| 865 | 160011-00008 | *O-RING | 2 |
| 866 | 160011-00011 | *O-RING | 5 |
| 867 | 160011-00014 | *O-RING | 4 |
| 868 | 160011-00006 | *O-RING | 1 |

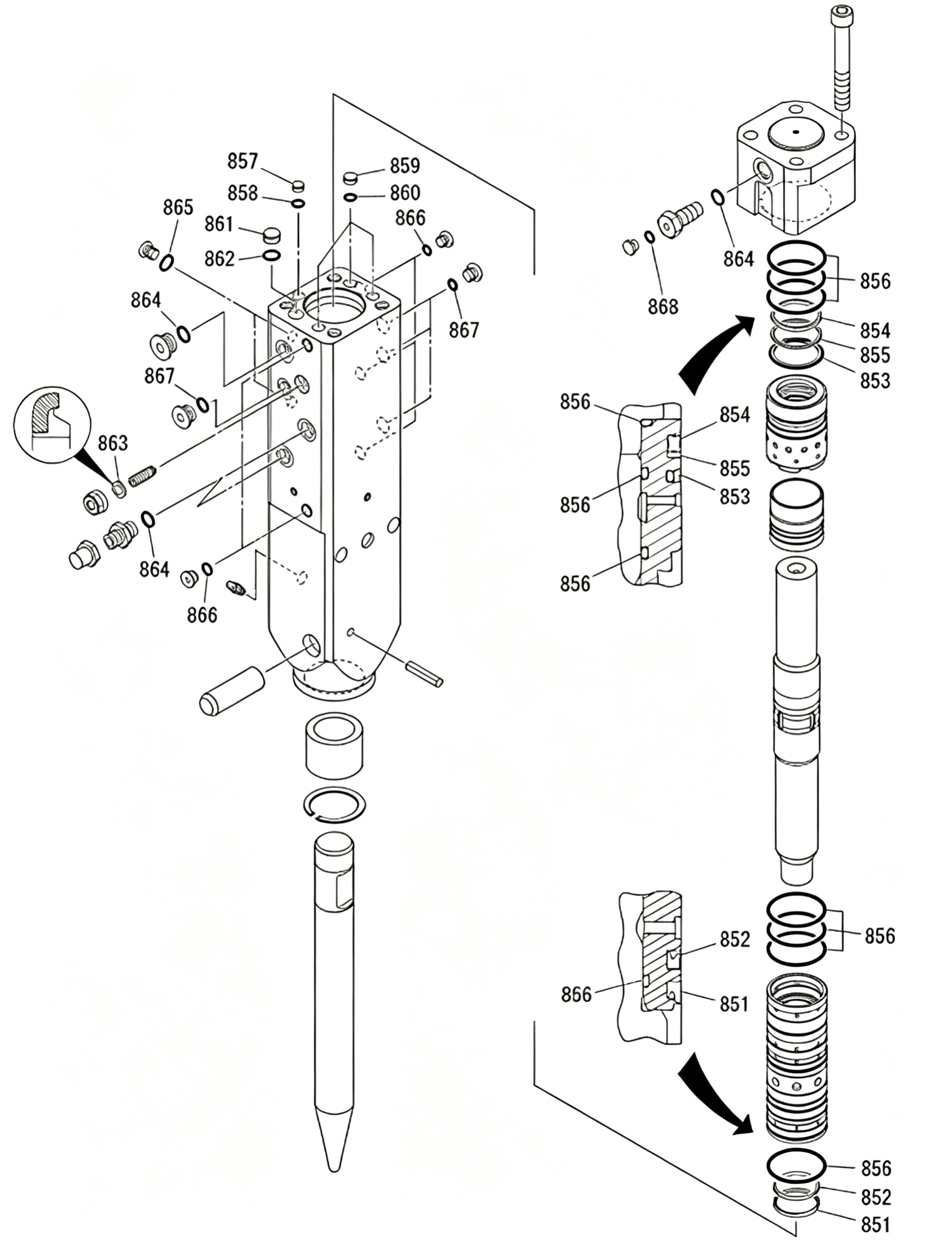

Exploded view
Product Description
Introducing the TOPSEALKIT Hydraulic Breaker Seal Kit for Furukawa FX35 Breakers
Ensure peak performance and extend the lifespan of your Furukawa FX35 hydraulic breaker with the TOPSEALKIT Hydraulic Breaker Seal Kit. Specifically engineered and manufactured by TOPSEALKIT, a trusted name in aftermarket heavy equipment parts, this seal kit provides a comprehensive solution for maintaining the efficiency and reliability of your crucial machinery.
Manufactured from premium TPU, HNBR, and PTFE materials and certified to ISO 9001 standards, this kit is built for durability and precision.
Compatible Part Number: 902307-920010
Why Choose the TOPSEALKIT Seal Kit for Furukawa FX35?
Hydraulic breakers operate under extreme pressure and demanding conditions, making the integrity of their seals paramount. The TOPSEALKIT seal kit is designed to meet or exceed OEM specifications, offering several key advantages:
-
Optimized Performance: Precision-engineered components ensure a perfect fit and seal, preventing hydraulic fluid leakage and maintaining consistent operating pressure for maximum breaking force.
-
Enhanced Durability: Manufactured from high-quality TPU, HNBR, and PTFE materials, these seals are built to withstand the rigorous environment of hydraulic breaking, resisting wear, heat, and pressure for extended service life.
-
Cost-Effective Maintenance: Proactive replacement of seals with a high-quality kit can prevent more significant damage and costly repairs down the line, saving you time and money.
-
Perfect Compatibility: This kit is specifically designed for the Furukawa FX35 hydraulic breaker (52MM tool), guaranteeing seamless integration and optimal function.
-
Reliable Quality from TOPSEALKIT: TOPSEALKIT is renowned for its commitment to quality and precision in manufacturing aftermarket heavy equipment parts, giving you confidence in your purchase.
What’s Included?
The TOPSEALKIT Hydraulic Breaker Seal Kit for Furukawa FX35 includes all the necessary seals to fully service your hydraulic breaker, ensuring a complete and effective repair. Each component is meticulously crafted to deliver a secure and lasting seal.
Fast & Flexible Shipping
With a short 2-5 day delivery time upon payment confirmation and a low MOQ of just 1 set, you can get your breaker back in operation quickly. We accept TT / Paypal / Western Union for your convenience.
Large Supply Capacity
With a supply ability of 50,000 sets, we can meet both small and bulk orders with ease.
Don’t let worn seals compromise the efficiency and productivity of your Furukawa FX35 hydraulic breaker. Invest in the TOPSEALKIT Hydraulic Breaker Seal Kit to ensure consistent power, reliable operation, and prolonged equipment life.
Ready to optimize your Furukawa FX35’s performance? Contact us today to learn more or to place your order for the TOPSEALKIT Hydraulic Breaker Seal Kit!
